Tutorial - Batch create images with transparency from cursors

Home > Tutorials > Batch create images with transparency from cursors

Batch create images with transparency from cursors

This article provides information on the following topics:

Required Resources

Axialis CursorWorkshop™ 6.31 or later
Tryout or Professional Edition

We recommend to learn more about
cursors before following this tutorial

Creating images with transparency from cursors can be very useful to create image objects or converting cursors to icons. A feature in CursorWorkshop permits to creating images from several cursors in one operation. This is what is called a "Batch Procedure".

Select the source cursors

1. Open a new Browser window. Choose File/New/File Browser...

2. When the window is opened, select the folder which contains the Source Files using the tree in the left pane.

3. The source cursor files appears (with preview) in the right pane. Select the cursors you wish to convert to images. You can use Shift/Ctrl + Mouse to select several cursors. Use Ctrl+A to select all. Use +/- to select/unselect by specifying filters.

You can extract images from static or animated cursors. For animated cursors, the generated image will be a filmstrip.

Create the images

4. Choose File Browser/Batch Create Images (PSD, PNG, BMP, GIF, JP2) from Cursors or Ctrl+Shift+X.

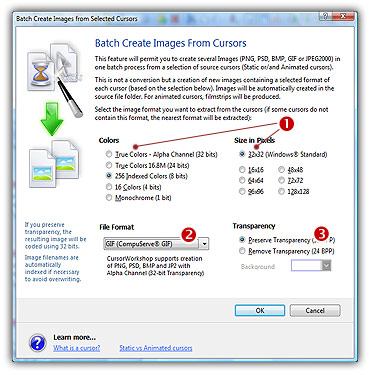

5. The dialog box Batch Create Images From Cursors opens (see below). In the Cursor Format to Extract group (), choose the image format you wish to extract from the cursors. You can choose only one image format. If this exact format does not exists in a cursor, the nearest format is chosen.

6. In the Image File Format group (), select the file format you wish to use for the images to create.

7. In the Transparency group (), choose if you wish to create transparent or opaque images. If you choose to preserve transparency, the images will be automatically converted to 32BPP with alpha channel (even if the chosen cursor format is 256 or less colors). If you choose to remove transparency, the images will be generated using 24BPP (no alpha channel). In such a case, you must specify a background color (to fill the transparent areas with this color).

8. When done, click OK. The batch operation starts immediately, the hourglass mouse pointer is displayed during the creation. When done the new Images are added to the folder contents.

The created images have the same filename as the original document with .PNG, .PSD ot .BMP appended. A smart system has been added to index the files if necessary to avoid overwriting. If this exact chosen format does not exists in a cursor, the nearest format is chosen for extraction.
