Create Windows XP Icons

In relation to Axialis IconWorkshop, this article offers information on the following topics:

Learn how to create icons which deal with the new Windows XP Style. We'll also see which image formats must be included in such icons in order to be compatible with all screen configurations (see What is an Icon for more info).


Microsoft Windows XP introduces a new style in icon design (see image below). We recommend you to follow the guidelines described in this topic to create compliant icons.

The best way to proceed is to start creating large scale versions of your images in an external vector or bitmap drawing program, such as Macromedia Freehand, Adobe Photoshop or Jasc Paint Shop Pro. The next step will be to import them into IconWorkshop to create your icons.


All these programs support the new Alpha Channel (a.k.a. 32 BPP Smooth Transparency) feature in images. This will help you to create beautiful icons with smooth edges.

What about the Windows XP icon format?

This is not a new icon format at all. This is a new image format that you can find in new generation of icons. This new image format is called "Windows XP format" in IconWorkshop.

This image format contains a 24 bit image, providing 16,8 million colors to the image, plus an additional 8 bit image called the opacity image (a.k.a. Alpha Channel). As a result, the image color depth is 32 bits (i.e. you need 32 bits to define one pixel). The main advantage of this image format is that it permits to display a smooth transparency in icons. The resulting image is displayed with smooth contours on all backgrounds. It permits also to create dropped shadows behind icons. This interesting effect, which is recommended by Microsoft, is usually used in Windows XP icons.

The following illustration shows the difference between a standard image format transparency (in 256 color formats for example) and the new Windows XP smooth transparency:


Axialis IconWorkshop

Create Icons using a Professional Authoring Tool

Make Icons

5-Star Award

  • Axialis IconWorkshop is a professional icon authoring tool for creating icons on multiple platforms and devices.
  • The tool supports creating icons for Windows, macOS, Unix/Linux, Android, iPhone.
  • The interface is designed to increase productivity, with easy accessibility to all tools and a powerful built-in librarian and file explorer.
  • Batch processing features are included for creating multiple icons at once.
  • The tool includes features such as icon creation from images and image objects to help create professional-looking icons quickly.
  • The tool is compatible with industry standards and includes plugins for Adobe products and Microsoft Visual Studio.

Windows 7 Windows 8 Windows 10 Windows 11 Plug-Ins Add In

Windows XP Icon Style Characteristics

To create a Windows XP compliant icon, try to respect the following characteristics:

1. Color is rich and complementary to the Windows XP look.

2. Angle and perspective provide a dynamic energy to the images.

3. Edges and corners of elements are soft and slightly rounded.

4. Light source is coming from the upper left-hand corner with additional ambient light illuminating other parts of the icon.

5. The use of gradients provides dimension and gives the icon a richer look.

6. A drop shadow provides contrast and dimension.

7. Outlines provide definition.

8. Everyday objects, such as computers and devices, have a more modern consumer look.

Windows XP Icon Color Depth and Size

To be compatible with all display cases and screen configurations, you must consider creating icons containing various image formats based on the following rules:

Image Sizes

16x16: Displayed in taskbar, windows upper-left corner, detailed lists...

24x24: Displayed in Windows 2000, Windows XP menus (optional)

32x32: Displayed in desktop, lists...

48x48: Displayed in Windows XP explorer and system lists...

Image Colors

Monochrome: Displayed by Windows if the screen is monochrome (rarely used, optional)

16 colors: Displayed by Windows if the screen is 16 or 256 colors (recommended)

256 colors: Displayed by WWindows if the screen is 16bits or True Colors (recommended)

RGB/A : Displayed by Windows XP if screen is True Color or more (recommended)


If an image format is missing, Windows displays the nearest existing image. It works but the result is generally distorted. Formats greater than 48x48 are not supported by Windows XP, they are used by Windows Vista.

Color Palette used in Windows XP Icons

The following colors are generally used in Windows XP icons:


We have created a file containing these color swatches. The file "Windows XP.axco" is located in "Color Swatches" subfolder of the installation directory. For your information, this file format is compatible with ACO color files used by Adobe Photoshop.

Perspective and Grouping Objects in Icons

This is the perspective grid that Windows XP style icons use:

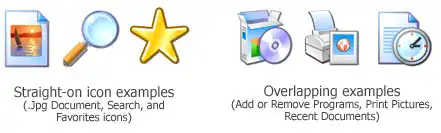

Not all objects work well at 16 × 16 at an angle. The following objects are usually shown in a straight-on manner:
